“Imagine a sensor so small it fits in your palm, yet powerful enough to give a self-driving car a wider view of the road than ever before. That is precisely what the new MIT lidar chip delivers, reshaping how autonomous vehicles see, react, and stay safe.
Introduction
Can a chip the size of a fingernail fix one of self-driving cars’ biggest blind spots? MIT engineers say yes, and their answer comes down to three cleverly shaped antennas working together.
“Self-driving cars, drones, and even construction robots depend on lidar to see the world around them. However, chip-based lidar sensors have always struggled with a narrow field of view. This new MIT lidar chip removes that limitation completely, and the MIT lidar chip does so without adding moving parts, extra cost, or bulk.” autonomous vehicles, aerial mapping, or industrial safety, because a wider and sharper view means machines that see more and react faster.

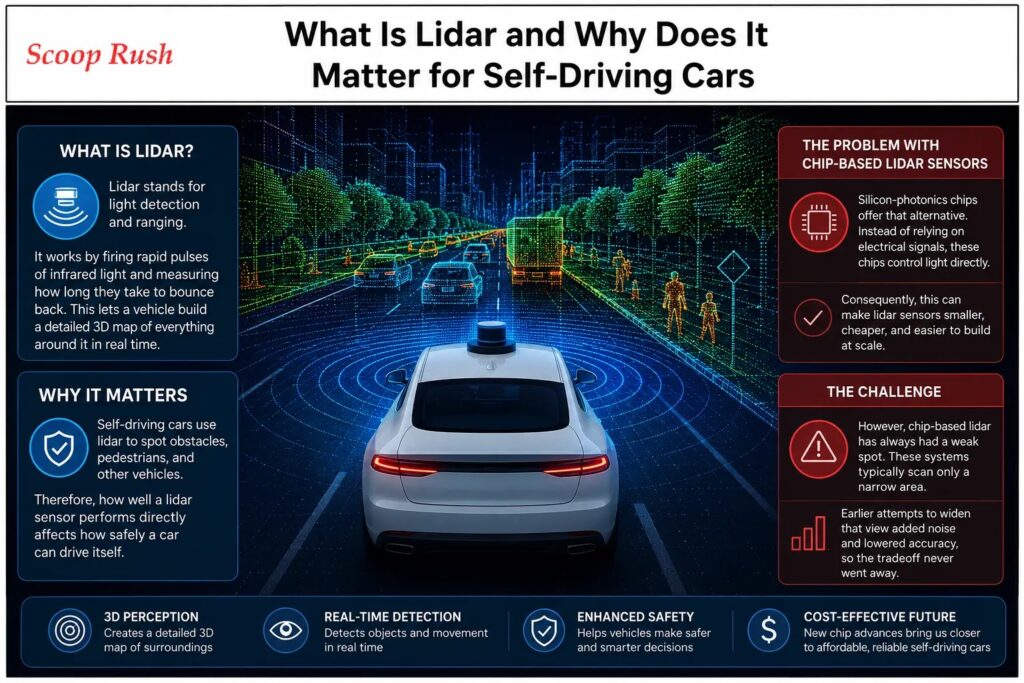

What Is Lidar and Why Does It Matter for Self-Driving Cars
“This MIT lidar chip breakthrough could support more than just autonomous vehicles.”
Lidar stands for light detection and ranging. It works by firing rapid pulses of infrared light and measuring how long they take to bounce back. This lets a vehicle build a detailed 3D map of everything around it in real time.
Self-driving cars use lidar to spot obstacles, pedestrians, and other vehicles. Therefore, how well a lidar sensor performs directly affects how safely a car can drive itself.
Older lidar systems use large rotating units to scan the surroundings. These mechanical parts work, but they are bulky, expensive, and wear out over time. As a result, engineers have chased a smaller and tougher alternative for years, much like how AI tools are reshaping efficiency across other industries.
The Problem With Chip-Based Lidar Sensors
Silicon-photonics chips offer that alternative. Instead of relying on electrical signals, these chips control light directly. Consequently, this can make lidar sensors smaller, cheaper, and easier to build at scale, similar to how Google’s AI chip advances aim to boost efficiency in computing hardware.
However, chip-based lidar has always had a weak spot. These systems typically scan only a narrow area. Earlier attempts to widen that view added noise and lowered accuracy, so the tradeoff never went away.
How MIT’s Lidar Chip Widens the Field of View
The MIT team, led by Professor Jelena Notaros, focused on a part called an optical phased array, or OPA. An OPA steers a beam of light electronically using a group of integrated antennas, with no moving parts at all.
Each antenna has tiny periodic grooves, called corrugations, running along its length. These grooves scatter light upward and out of the chip. By adjusting the phase of light sent to each antenna, engineers can steer the beam’s direction with precision.
Why Antenna Spacing Was the Real Challenge
This is where things got difficult. When antennas sit too close together, they interfere with each other’s signals, a problem known as crosstalk.
To avoid this, engineers usually spaced antennas farther apart. Unfortunately, that created a different issue. Widely spaced antennas produce several copies of the same beam, called grating lobes, at different angles.
“This limits our field of view, so the autonomous vehicle now only knows what is in front of it for a certain angular range,” explains Andres Garcia Coleto, one of the study’s co-authors.
These extra beam copies confuse sensors, trigger false detections, and waste energy meant for the main beam. So the MIT team needed a way to pack antennas tightly without triggering that interference.
Three Antenna Shapes Solve the Lidar Interference Puzzle
Instead of using identical antennas, as most systems do, the MIT researchers built three antennas with different shapes. They varied each antenna’s width along with the size and placement of its corrugations.
Each antenna has a different structure. As a result, it also has a different propagation coefficient, a value describing how light travels through it.
“Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor,” Garcia Coleto says.
This design let the team place antennas much closer together than usual. Meanwhile, it avoided the crosstalk that tight spacing normally causes.
Keeping Every Antenna’s Output Consistent
Reducing interference was only half the job. Even though the three antennas had different shapes, they still needed to emit light in a matching way.
The team set three specific goals. Each antenna had to emit the same amount of light. Additionally, every antenna needed to release its beam at the same angle for a given wavelength. Finally, the emission angle had to shift evenly as the beam was steered across the array.
“We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics,” says lead author Henry Crawford-Eng. “While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently.”
To solve this, the researchers first built new electromagnetic theory describing how radiative modes interact. They then used that theory to guide simulations before manufacturing a real prototype.

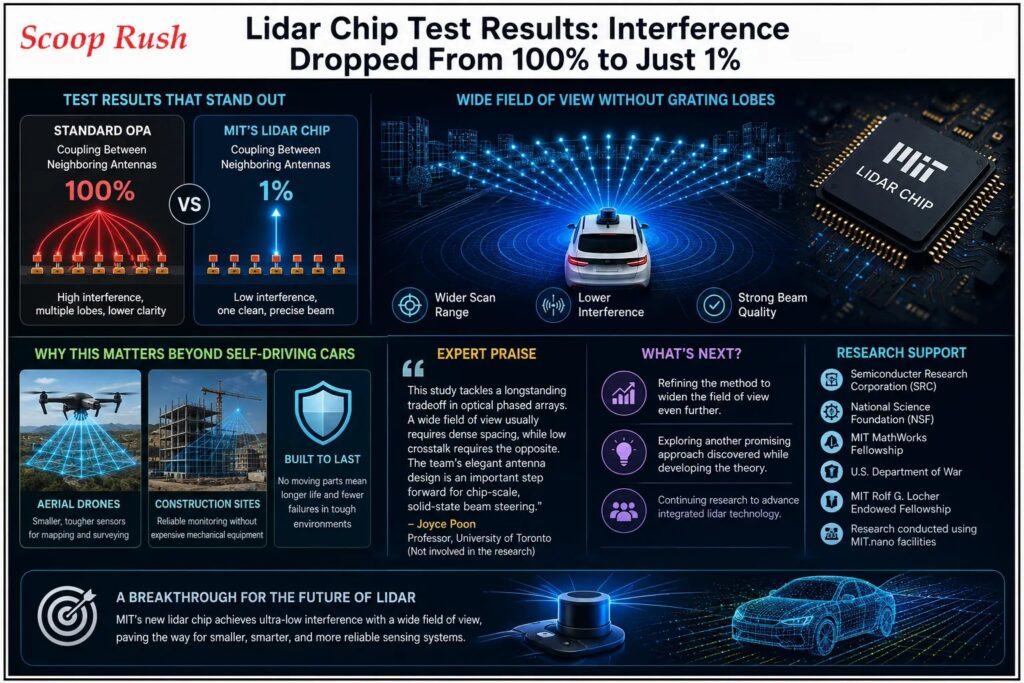

Lidar Chip Test Results: Interference Dropped From 100% to Just 1%
“MIT Lidar Chip Test Results: Interference Dropped From 100% to Just 1%
Once built, the team tested the MIT lidar chip experimentally, and the results stood out immediately.”
A standard OPA typically shows close to 100 percent coupling between neighboring antennas under similar conditions. Meanwhile, the MIT design cut that coupling down to just 1 percent, while still producing one clean, precise beam.
The system steered this beam across a wide field of view without producing any grating lobes. This mix of a wider scan range, lower interference, and strong beam quality solves a stubborn problem. It is one of the toughest challenges in integrated lidar technology, not unlike the hardware demands driving Nokia’s AI-RAN platform with Nvidia.
Joyce Poon, a professor at the University of Toronto who was not involved in the research, praised the work. She noted that the study tackles a longstanding tradeoff in optical phased arrays, since a wide field of view usually demands dense antenna spacing, while low crosstalk usually demands the opposite. According to Poon, the team’s elegant antenna design marks an important step forward for chip-scale, solid-state beam steering.
Why This Matters Beyond Self-Driving Cars
This breakthrough could support more than just autonomous vehicles. For example, aerial drones could use these smaller, tougher sensors for mapping and surveying. Similarly, construction sites could rely on this technology for ongoing monitoring without expensive mechanical equipment.
Because the design removes moving parts entirely, these sensors should also last longer. Fewer mechanical components generally mean fewer failures, which matters most in demanding, real-world environments, a concern echoed in reports on AI tools speeding up NHS waiting times through more reliable technology.
The MIT researchers are not done yet. They plan to refine the method to widen the field of view even further. Additionally, they are exploring another possible approach to wide field-of-view performance that emerged while developing the underlying theory.
The team published this research in Nature Communications. The Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship supported the work in part. The team carried out some of the work using MIT.nano facilities.
Conclusion
MIT’s new lidar chip marks real progress for autonomous vehicle technology. By designing three uniquely shaped antennas, researchers cracked a problem that has challenged engineers for years: widening a lidar sensor’s field of view without adding noise or interference.
The numbers tell the story. Crosstalk dropped from nearly 100 percent to just 1 percent, while the system still delivered one precise beam across a broad scanning range. As a result, this breakthrough could lead to smaller, cheaper, and more durable lidar sensors for self-driving cars, drones, and industrial monitoring.
Ultimately, as MIT continues refining this technology, the road ahead for autonomous navigation looks clearer than ever.
FAQs
What is lidar and why does it matter for self-driving cars?
Lidar uses pulses of infrared light to measure distances and build detailed 3D maps of the environment. Self-driving cars depend on lidar to detect obstacles, pedestrians, and other vehicles in real time, which makes it essential for safe navigation.
What problem did MIT’s new lidar chip solve?
MIT’s chip solved the tradeoff between a wide field of view and low interference. Older chip-based lidar systems could either scan widely with too much noise, or stay accurate with a narrow view, but never both.
How does the new antenna design cut down interference?
The researchers built three antennas with different shapes and propagation coefficients. This lets them sit close together without strongly coupling with each other, which sharply reduces unwanted crosstalk.
How much did the new design reduce signal interference?
Under test conditions, a standard antenna array showed nearly 100 percent coupling between antennas. MIT’s design brought that down to about 1 percent while still producing one clean, precise beam.
Where could this lidar breakthrough be used in the real world?
This technology could benefit self-driving cars, aerial drones for mapping and surveying, and construction sites that need ongoing monitoring. Since the design has no moving parts, it should also be smaller, cheaper, and longer-lasting than traditional lidar systems.
